Flash-JET DPF Cleaning Machine: Diesel Particulate Filter Regeneration System
Restore DPF flow rates up to 99% in under 30 minutes with our non-destructive aqueous cleaning technology. An integrated wash-and-dry cycle that requires absolutely no cutting or welding.
PRINCIPLE
The Flash-JET DPF cleaning machine uses a high-pressure water-based pulse technology to clean diesel particulate filters (DPF), SCR catalysts, DOC, and FAP filters. Specialized cleaning systems pressurized water mixed with dedicated cleaning agent directly into the filter channels. The pulsating water flow dislodges accumulated soot, ash, oil residues, PM10 particles, and cerium oxide deposits trapped deep within the filter substrate — all without cutting, baking, or welding the filter housing.
An integrated three-stage water filtration and recirculation system ensures clean water is used in every cycle, while the built-in drying module completes the entire cleaning process in one seamless operation. Siemens PLC control with touchscreen interface allows operators to monitor and record before/after flow data for quality verification.
SOLVING PAIN POINTS
Traditional cleaning requires physically cutting open the filter housing, baking the substrate, then welding it back — risking structural damage and voiding manufacturer warranty. Flash-JET cleans DPFs non-destructively, preserving filter integrity.
Product List/Specifications Comparison
| Model | Flash-JET | Flash-JET Pro | Flash-JET Eco |
| Inside Washing Capacity | 1800×800×1000 MM 2000×1000×1000 MM 1120×800×960 MM | ||
| External Dimensions | 2270×980×2340 MM | 2630×1150×2360 MM | 1200×1100×2210 MM |
| Floor Load Capacity | 200KG 250KG | 200KG | |
| Tank Capacity | 300L,single tank | 200L+200L=400L,two tanks | 250L,single tank |
| Filter | Three-level | Three-level | Two-level |
| Oil Mist Treatment | Oil mist cleaner | Oil mist cleaner | Fan |
| Control System | PLC&HMI,Auto &Manual Mode PLC &HMI,Auto &Manual Mode | PLC&HMI,Manual Mode | |
| Power Consumption | 19.57 KW | 25.6 KW | 18.5 KW |
| Max.Current | 42A | 52.5A | 34A |
| Power Supply | 380V,50Hz,3Ph+N+PE 380V,50Hz,3Ph+N+PE 380V,50Hz,3Ph+N+PE | ||
| Packaging Size | L2400xW1160xH2300 MM | L2750xW1280xH2300 MM | L1250xW1220xH2230 MM |
| Weight | 880 KG | 1000KG | 480KG |
| Gross Weight | 1200 KG | 1400KG | 650KG |
ICE-JET 15 Pro Dry Ice Blasting Machine — Efficient & Eco-Friendly Industrial Cleaning Solution
The Flash-JET DPF Cleaning Machine offers a highly efficient, 100% damage-free cleaning and regeneration solution for all types of DPF and SCR filters . Without the need for cutting or welding, this system effectively restores filters to meet strict Euro 5 and Euro 6 emission standards. It features an advanced, one-stop automated cycle that seamlessly transitions from washing to drying, significantly boosting workshop efficiency. Supported by an independent dual-cylinder filtration system to ensure liquid purity, the machine delivers a thorough and professional cleaning process from start to finish.
Designed with user convenience and environmental safety in mind, the system is equipped with an intuitive color touch screen that allows operators to easily configure parameters for both automatic and manual modes . It actively prioritizes a clean workspace by incorporating a built-in oil and mist cleaner that prevents pollution during operation. To guarantee transparency and customer satisfaction,the machine can perform pre- and post-cleaning pressure drop tests, providing instant, verifiable results via a built-in data printer so you can easily show the before-and-after difference to your clients.
KEER Automatic DPF Cleaning Machine Series
Key Benefits of Non-Destructive DPF Cleaning Technology
Cleans DPF, SCR, DOC, and FAP filters without cutting, baking, or welding. Preserves filter structural integrity and catalytic coating — no warranty void risk.
Complete cleaning process — washing, rinsing, and drying — in one machine, one cycle. Reduces operator handling and shortens total turnaround time to under 30 minutes per filter.
PM10 particles, oil residues, and cerium oxide are captured by a dedicated three-stage filtration system. Purified water is recirculated, ensuring consistent cleaning quality and minimizing water consumption.
SUS304 thickened stainless steel interior and exterior. Siemens PLC with touchscreen HMI, Schneider/SMC/Omron key components. Built-in before/after flow data recording and printing for quality traceability.

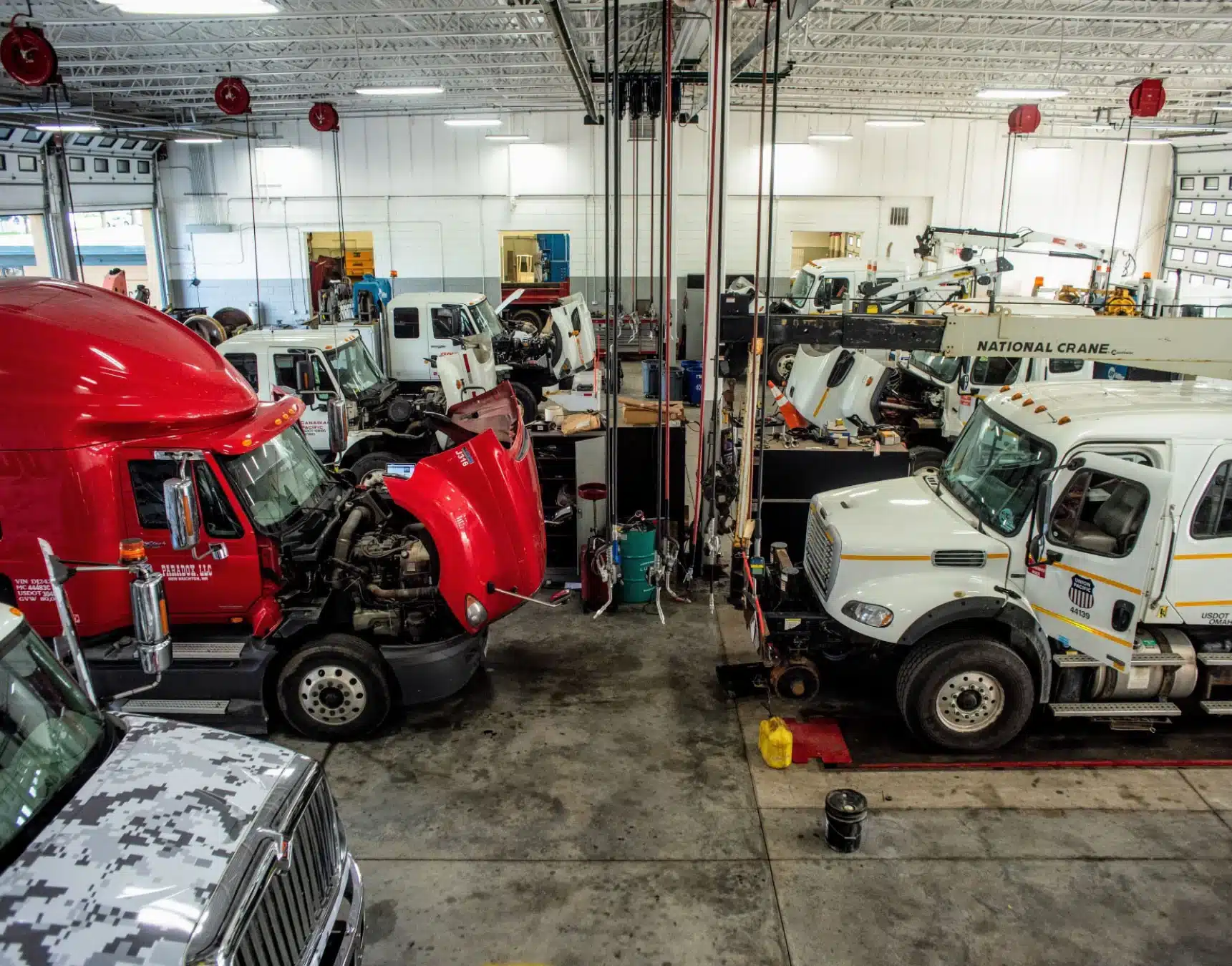

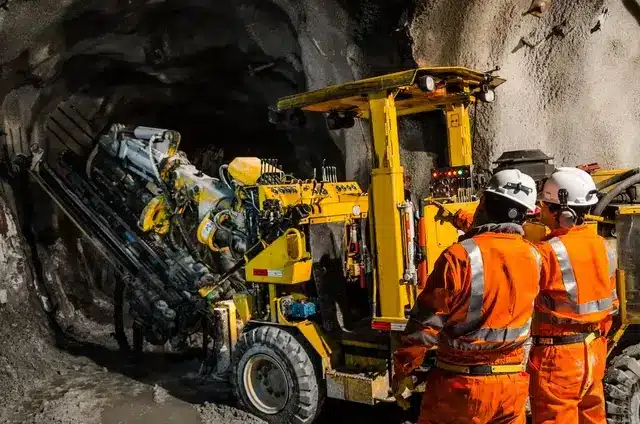

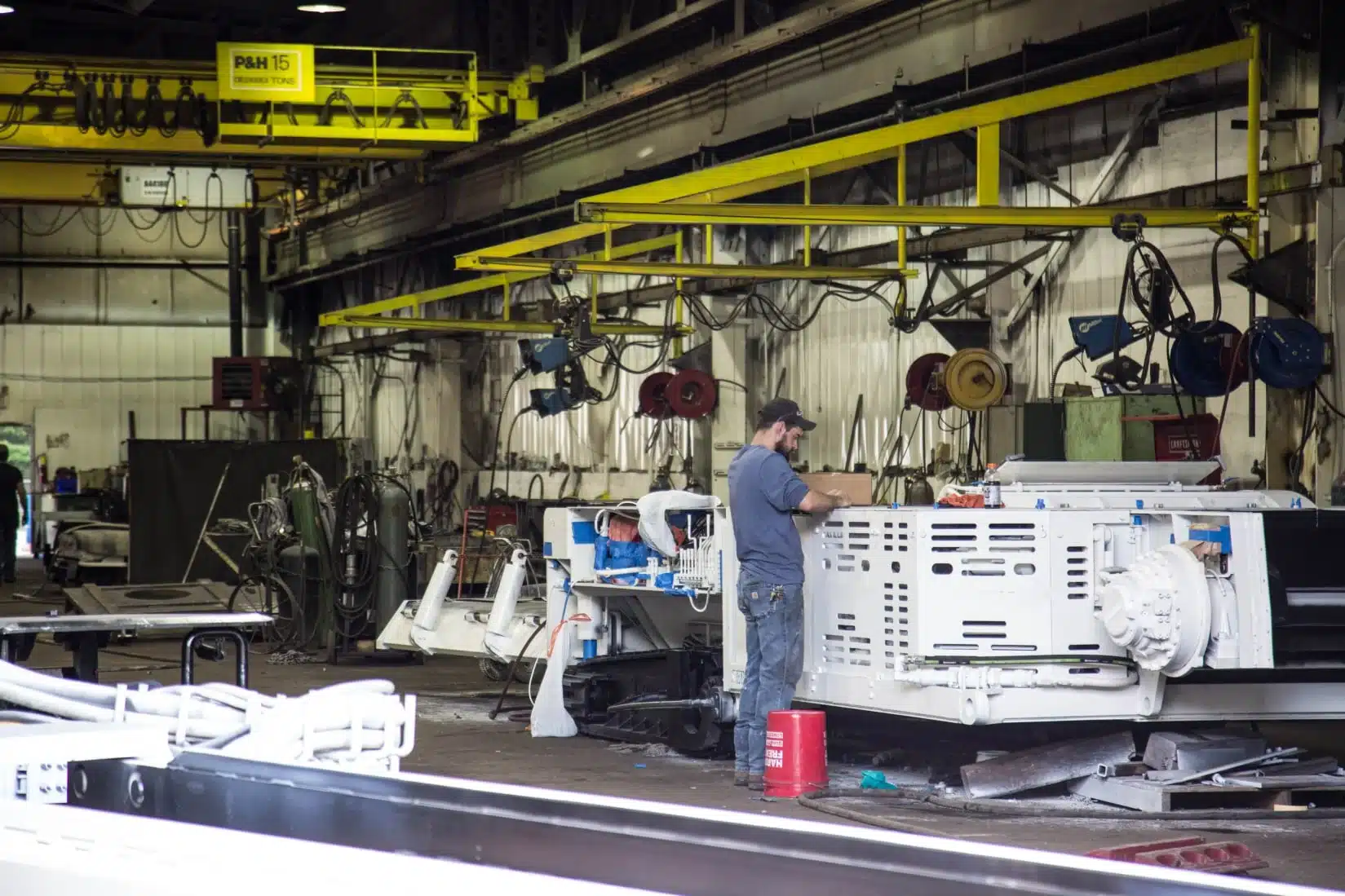

Industry Applications for DPF Cleaning Machines
Frequently Asked Questions About DPF Cleaning Machines
What types of filters can the Flash-JET DPF cleaning machine clean?
The Flash-JET is designed to clean all types of air particulate filters from industrial vehicles and equipment, including DPF (Diesel Particulate Filter), SCR (Selective Catalytic Reduction), DOC (Diesel Oxidation Catalyst), and FAP (Filtre à Particules) filters used in trucks, buses, , and dust collectors.
Does Flash-JET require cutting open the DPF filter?
No. Unlike traditional cleaning methods that require cutting the filter housing, baking out the soot, and welding it back, Flash-JET uses a non-destructive aqueous pulse cleaning method. The filter remains intact throughout the entire process, preserving its structural integrity and original manufacturer specifications.
How efficient is the Flash-JET DPF cleaning process?
Flash-JET achieves up to 99% flow rate restoration by removing oil residuals, PM10 particles, soot, ash, and cerium oxide from deep within the filter channels. The machine’s before/after data comparison and printing function allows operators to verify and document cleaning results for quality assurance.
What is the cleaning cycle time for one DPF filter?
A complete wash-and-dry cycle typically takes 20–30 minutes per filter, depending on the filter size and contamination level. The integrated workflow eliminates the need to transfer the filter between separate washing and drying stations.
What are the installation and utility requirements?
Flash-JET requires a 380V, 50Hz, 3-phase+N+PE power supply with 19.97 kW consumption. An external air compressor (0.45–0.65 MPa, 0.5 m³/min) is also required. The machine’s compact footprint (2200 × 850 mm) fits standard workshop bays. Full installation guidance and remote technical support are provided by KEER.
What after-sales support does KEER provide for DPF cleaning machines?
KEER provides comprehensive warranty coverage, detailed installation and operation training, and lifetime technical support. We also supply KES-branded DPF cleaning agents and consumables for ongoing operation.
