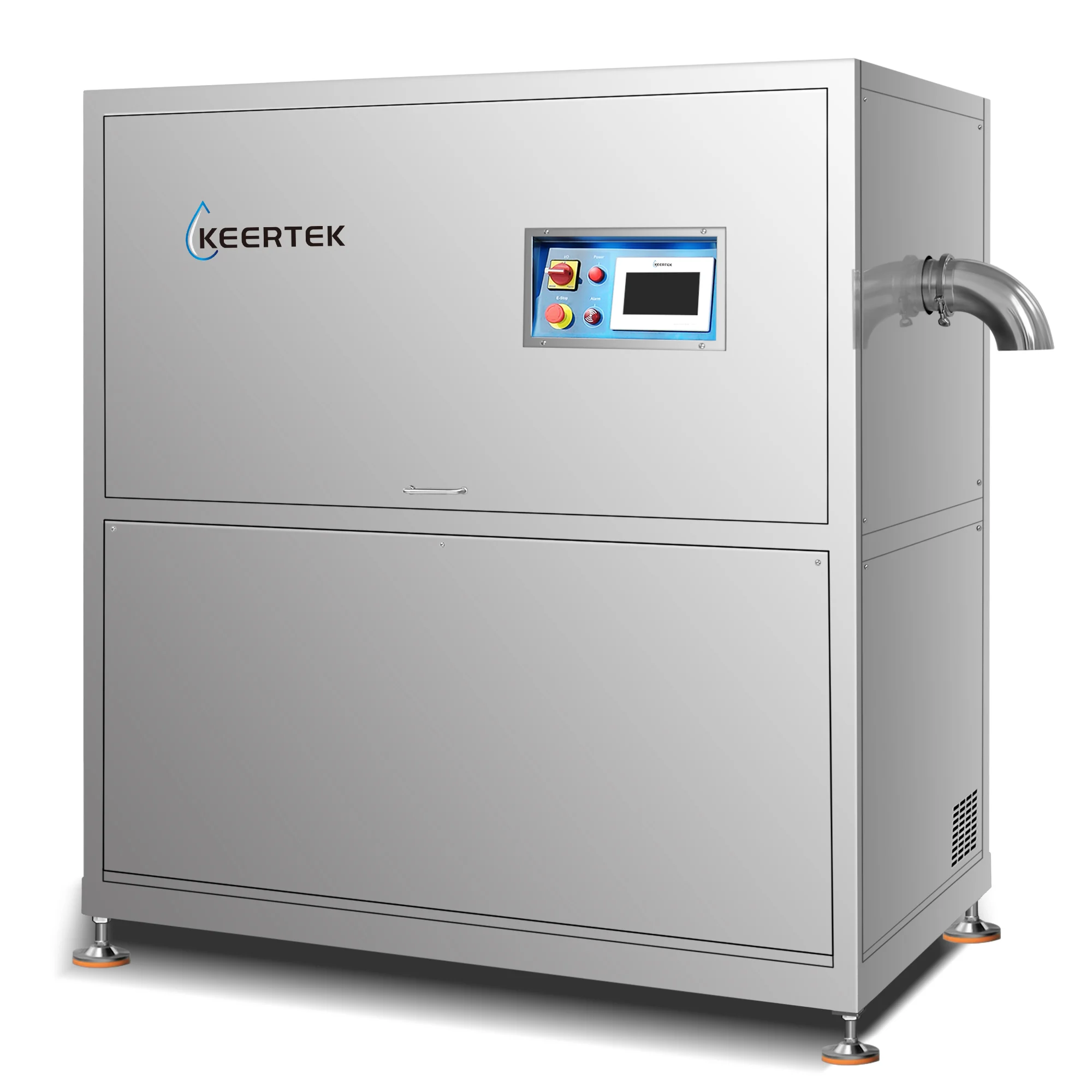

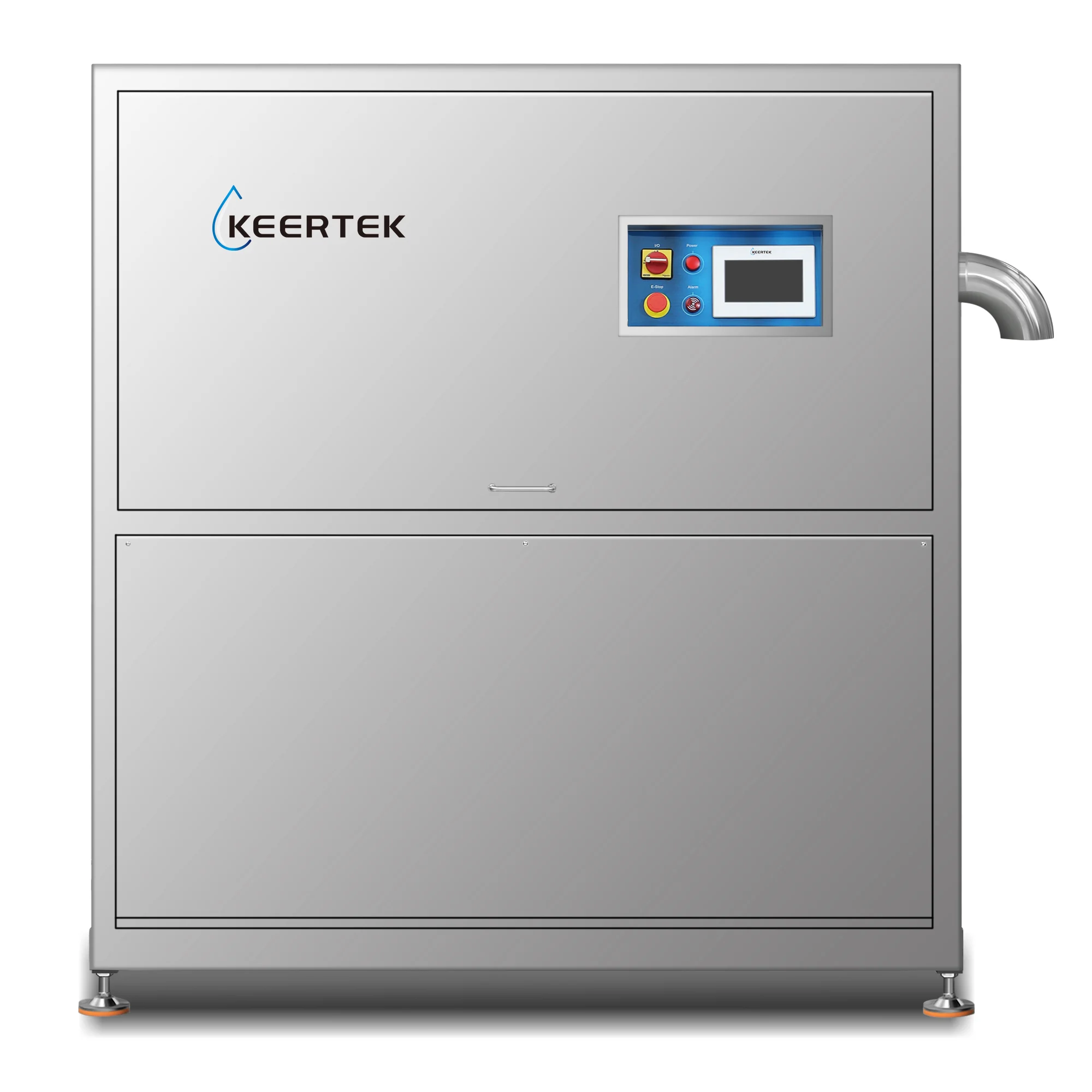

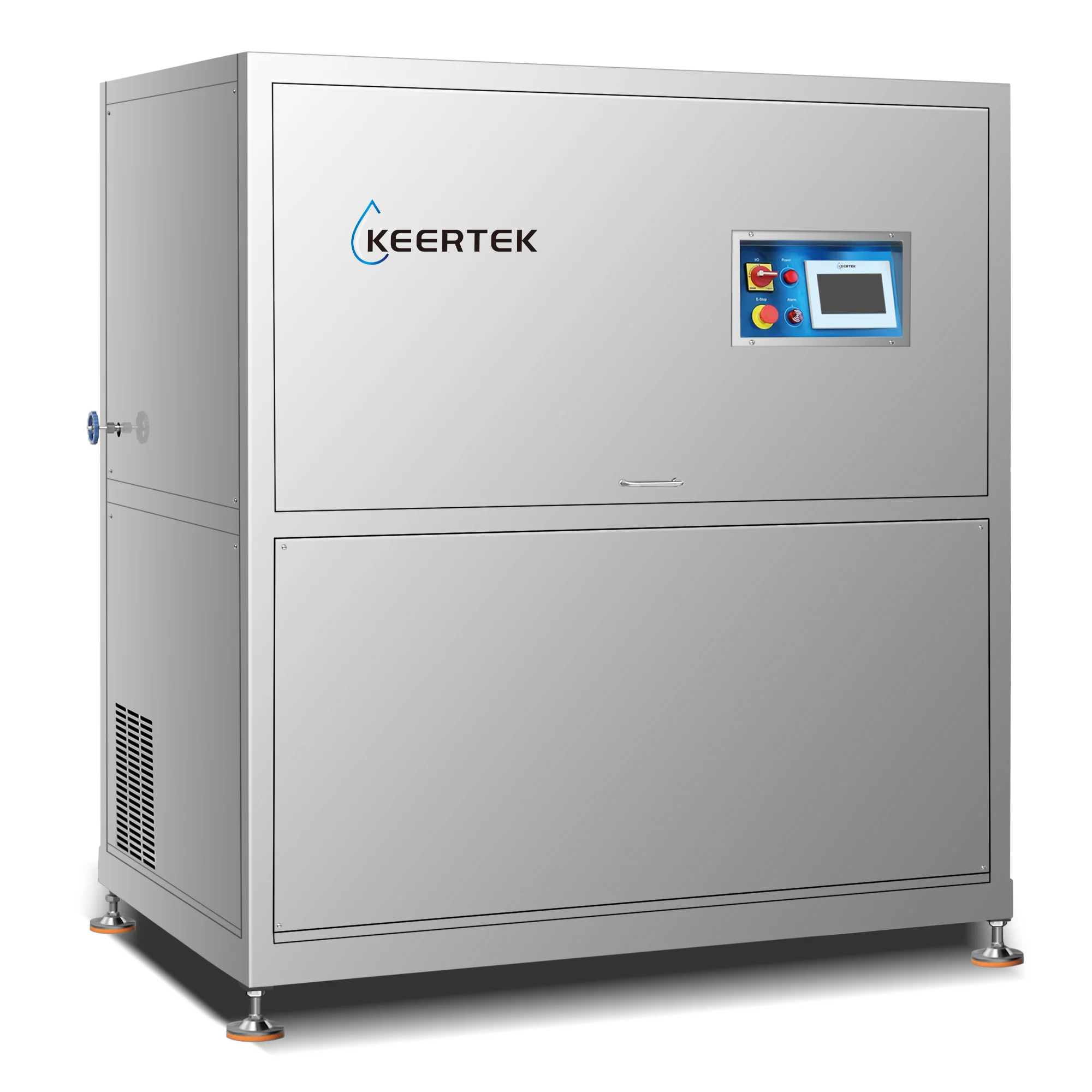

معدات إنتاج حبيبات الثلج الجاف من سلسلة ICE-PEL

معدات إنتاج حبيبات الثلج الجاف من سلسلة ICE-PEL 2

وصف المنتج

It can be used with dry ice washing machines or used as a stand-alone production machine;

PLC control system, production parameters can be set easily;

The produced dry ice is high-density and high-purity, and the consumption rate is relatively reduced;

It can produce food-grade dry ice pellets;

It can produce dry ice particles in different sizes by changing different molds;

Totally enclosed design, using high-quality stainless-steel plate as the outer body,which is neat and generous in appearance, and the open frame design is easy to maintain;

The core components adopt world-famous brands to ensure the reliable running for 24hours a day and 7 days a week in a row;

Build-in designed hydraulic pump station and dry ice molding module reduce the floor area of equipment and avoid the influence of dust in production;

Compact structure with small floor space, easy to move,which is the best choice for small & medium-sized workshops;

المعلمة

الطراز	ICE-PEL 150	ICE-PEL 300	ICE-PEL 500	ICE-PEL 1000
Dry Ice Output	120-150 KG/H	260-300 KG/H	460-500 KG/H	950-1000 KG/H
CO2 Conversion Rate	30-40%	30-40%	30-40%	30-40%
Hydraulic Oil	64HM	64HM	64HM	64HM
Oil Tank Capacity	200L	300L	400L	600L
Motor Power	7.5KW	15KW	22KW	44KW
Inlet Pressure	16-20Bar	16-20Bar	16-20Bar	16-20Bar
الأبعاد	1700x900x1780mm	1700x1700x1780mm	1700x1800x1780mm	1700x3600x1780mm
الوزن	900KG	1800KG	2000KG	3800KG
الفولتية	380V/50Hz, 3Ph+N+PE	380V/50Hz, 3Ph+N+PE	380V/50Hz, 3Ph+N+PE	380V/50Hz, 3Ph+N+PE

الباقة والضمان

الإعدادات

Standard: Deice main body (1unit), cryogenic flexible hose (1piece), 3mm dry ice mold (1piece), 16mm

dry ice mold (1piece)

Optional: Hydraulic oil, food-grade hydraulic oil, other optional molds, mold quick-changing tool, spare kit.

الباقة والضمان

العبوة: علبة القشرة القياسية الدولية

كفالة: سنة واحدة

التطبيقات

Dry ice is a commonly used industrial consumable and a necessary refrigeration consumable for cold-chain transportation. It can be built to produce and sell dry ice in areas where tire rubber vulcanization plants are concentrated and where fresh agricultural products are produced.

Since dry ice is not easy to store and transport, it is recommended that the sales range of dry ice be within 100km or the transportation time should not exceed 12 hours.

The dry ice production process is simple and convenient to manage. The sales volume is stable. Once a fixed source of customers is developed, he will usually be purchased for a long time.

ما هو الثلج الجاف؟

الجليد الجاف هو الحالة الصلبة لثاني أكسيد الكربون (CO₂) التي تتشكل عند درجة حرارة -79 درجة مئوية.

يوجد ثاني أكسيد الكربون بشكل طبيعي على الأرض في صورة غاز. وهو غير سام ولا طعم له، وغالبًا ما يُستخدم لتزويد المشروبات بالغازات لإضفاء طعم منعش عليها وإطالة مدة صلاحيتها. كما يُستخدم الثلج الجاف في صناعة الأغذية لتبريد الأطعمة أو في مجال الخدمات الصحية.
